GT-320
Watch Type Tag
Supports TDoA/ToF modes, offering vital sign data, screen interaction, and more, providing diverse application scenarios for positioning environments.

Description
The GT-320, a wristwatch-style UWB positioning tag introduced by GIPS Technology, supports TFoA/ToF modes, featuring a screen and vital sign data collection capabilities, providing diverse positioning application scenarios. Suitable for various applications in commercial offices, industrial settings, healthcare, logistics, and more.

Specifications
UWB Working Frequency
4492.8MHz (CH3)
Dimensions (mm)

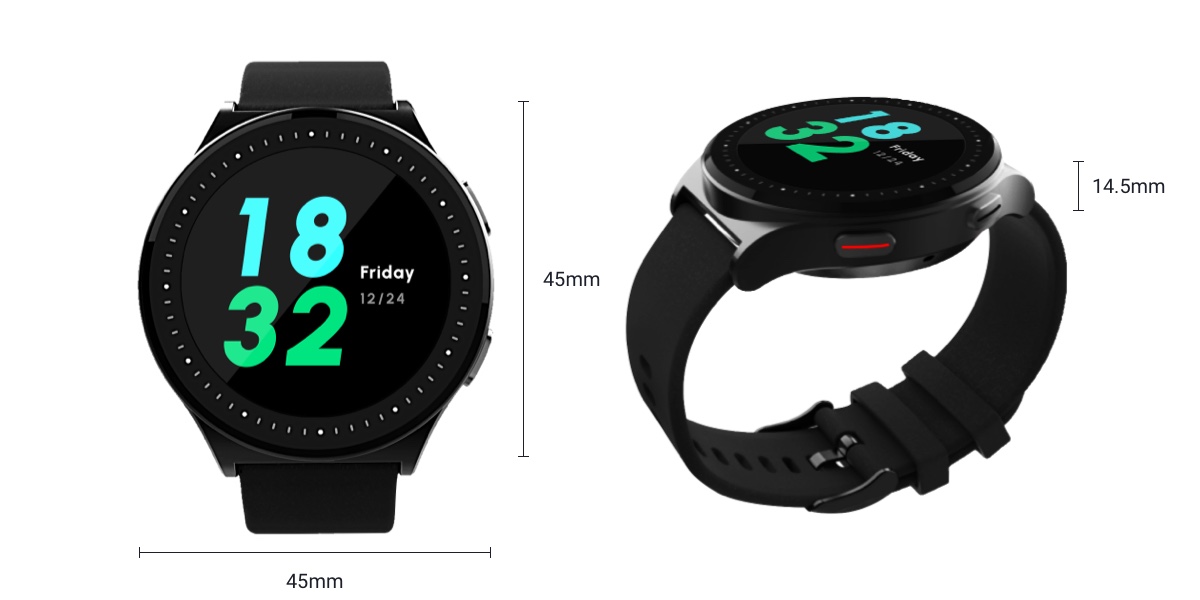

ø45 x 14.5 (wrist band excluded)
Weight
45 g
Operating Temperature
0°C ~ 60°C
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Power Supply
5V DC-in w/ Magnetic Charging Dock
External I/O
2 x Function Button
LED Indicator
N/A
Battery Life
- ToF: 1+ Days@1Hz w/ smart sleep
- TDoA: 2+ Days@1Hz w/ smart sleep
- Battery life would change according to the screen, vital sign sensor usage
Functions
- SOS alert
- Smart Rest Mode
- Vibration
- Buzzer
- Message
- Heart Rate Monitor
- Blood Oxygen Monitor
- Activity Monitor
IP Ratings
IP X6
Screen
1.32-inch TFT Screen, Resolution 360x360
Compliance
- FCC: 2A6S5-GT320
- NCC: CCAN24LP0960T0
- Telec(JP): 201-240572
